Lower Limb



HIP JOINTS


Position of patient: Supine head first.

Supporting pad fix just below the legs.

Centering on S4 Vertebra.

Offer the patient ear plugs & ear protector or Music

Sequence- Survey three plane

Sequence

Coronal - STIR, GRE, T1, PD

Sagittal -PD FS, T1

Transverse- T2 FS, T1, PD

Transverse plan: On coronal image plan block parallel to both femoral head and check The block position on other two  planes.



Transverse parameters T2 FAT SAT



FOV  300-350





TE – 80



TR

3000-5000



Matrix 292x292





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the

plan





IR Delay 90



Oversampling-Yes









Sagittal  plan: On coronal image plan block parallel to femur and check block position on other planes with appropriate angle.


Sagittal Stir Scan parameters



FOV  200-250





TE – 80



TR

3000-5000



Matrix 292x292





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – AP



NEX 2



Saturation band parallel to the

plan





IR Delay 90



Oversampling-Yes





Sagittal T1 Scan parameters



FOV  200-250





TE – 15



TR

400-700



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – AP



NEX 2



Saturation band parallel to the

plan





Oversampling-Yes







Coronal plan: On Transverse image plan block parallel to both femoral head and check the  block position on other planes.



Coronal STIR Scan parameters



FOV  300-350





TE – 80



TR

3000-5000



Matrix 292x292





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the

plan





IR Delay 90



Oversampling-Yes





Coronal T1 Scan parameters



FOV  300-350





TE – 15



TR

400-700



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel or over  the

plan





Oversampling-Yes



Coronal GRE Scan parameters



FOV  300-350





TE – 8-12



TR

400-500



Matrix 256X256





Flip angle-25-30







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel or over  the

plan





Oversampling-Yes




THIGH/ FEMER

Position of patient: Supine head first.

Supporting pad fix just below the legs.

Centering on mid thigh.

Offer the patient ear plugs & ear protector or Music

Sequence- Survey three plane

Sequence

Coronal - STIR, GRE, T1, T2

Sagittal -STIR, T1

Transverse- T2 FS, T1, PD

Coronal plan: On Transverse image plan block parallel to both femur  and check block position on other planes.




Coronal STIR Scan parameters



FOV  400-500





TE – 80



TR

3000-5000



Matrix 292x292





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the

plan





IR Delay 90



Oversampling-Yes





Coronal T1 Scan parameters



FOV    400-500







TE – 15



TR

400-700



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the

plan





Oversampling-Yes



Transverse plan: On coronal image plan block  Perpendicular to Both  femur and check block position on other planes.


Transverse Stir Scan parameters



FOV  300-400






TE – 80



TR

3000-5000



Matrix 292x292





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the

plan





IR Delay 90



Oversampling-Yes





Transverse T1 Scan parameters



FOV  300-400






TE – 15



TR

400-700



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the

plan





Oversampling-Yes



Sagittal plan: On coronal image plan block parallel to femoral shaft and check block position on other planes with appropriate angle.



Sagittal Stir Scan parameters



FOV  400-500





TE – 80



TR

3000-5000



Matrix 292x292





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the

plan





IR Delay 90



Oversampling-Yes





Sagittal T1 Scan parameters



FOV  400-500





TE – 15



TR

400-700



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the

plan





Oversampling-Yes






Knee

Position of patient: Supine feet first.

Supporting pad fix just below the legs.

Centering on mid knee

Offer the patient ear plugs & ear protector or Music

Sequence- Survey three plane



Sequence

Sagittal –PDFD,PD,T1,GRE,3DPDFS,T2

COR  -PDFS,PD,T1

TRANSVERSE –PDFS,PD,T1

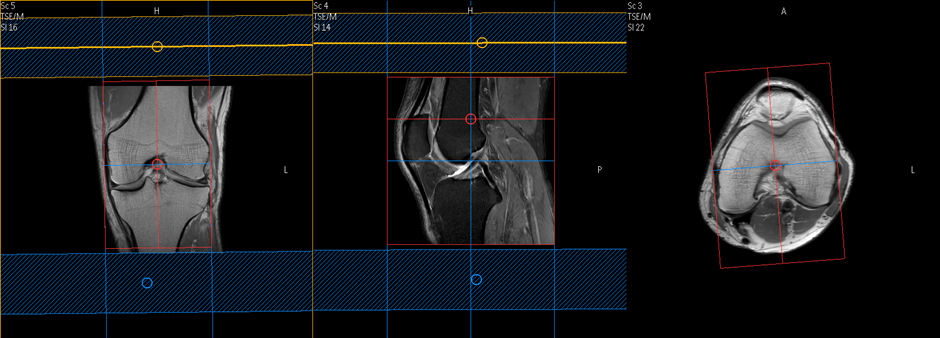

Transverse plan: On coronal image plan block parallel to medial or lateral condyle of  femur  and check the block position on other planes.

Transverse PD Fat Sat Scan parameters



FOV  140-160





TE – 30



TR

2500-5000



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the

plan



IR Delay 80

Oversampling-Yes





Transverse PD TSE Scan parameters



FOV  140-160





TE – 10



TR

3500-5000



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the

plan





Oversampling-Yes





Transverse T1 Scan parameters



FOV  140-160





TE – 15



TR

400-700



Matrix 256X256





Flip angle-90













Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the

plan





Oversampling-Yes

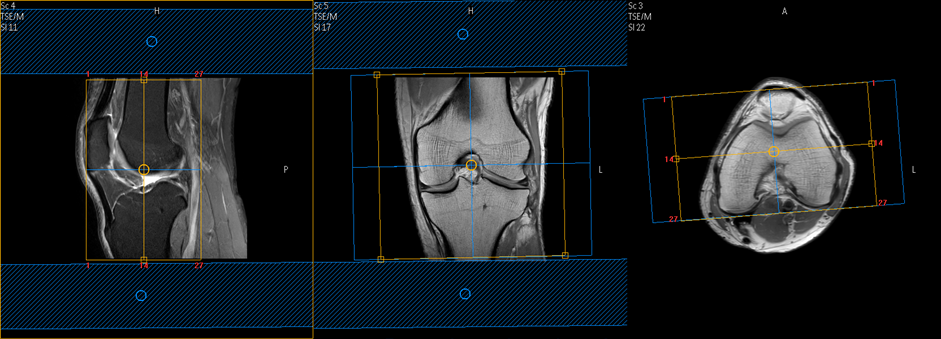

Coronal plan: On Transverse image plan block parallel to medial or lateral condyle of  femur  and check block position on other planes.


Coronal PD Fat Sat Scan parameters



FOV  140-160





TE – 30



TR

2500-5000



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the

plan



IR Delay 80

Oversampling-Yes





Coronal PD TSE Scan parameters



FOV  140-160





TE – 10



TR

3500-5000



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the

plan





Oversampling-Yes





Coronal T1 Scan parameters



FOV  140-160





TE – 15



TR

400-700



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the

plan





Oversampling-Yes





Sagittal  plan: On Transverse image plan block parallel to lateral or medial femoral  condyle and check block position on other planes with appropriate angle.


Sagittal PD Fat Sat Scan parameters



FOV  140-160





TE – 30



TR

2500-5000



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the

plan



IR Delay 80

Oversampling-Yes





Sagittal PD TSE Scan parameters



FOV  140-160





TE – 10



TR

3500-5000



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the

plan





Oversampling-Yes





Sagittal T1 Scan parameters



FOV  140-160





TE – 15



TR

400-700



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the

plan





Oversampling-Yes










LEG

Position of patient: Supine feet first.

Supporting pad fix just below the legs.

Centering on mid leg.

Offer the patient ear plugs & ear protector or Music

Sequence- Survey three plane

Sequence

Cor- STIR,GRE,T1,T2

SAG-STIR

AXIAL- T2 FS,T1



Transverse plan: On coronal image plan block perpendicular to shaft of tibia and check block position on other planes with appropriate angle.


Transverse Stir Scan parameters



FOV  200-250





TE – 80



TR

3000-5000



Matrix 292x292





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the

plan





IR Delay 90



Oversampling-Yes





Transverse T2 Scan parameters



FOV  200-250





TE – 115



TR

3000-5000



Matrix 292x292





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the

plan







Oversampling-Yes





Transverse T1 Scan parameters



FOV  200-250





TE – 15



TR

400-700



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the

plan





Oversampling-Yes




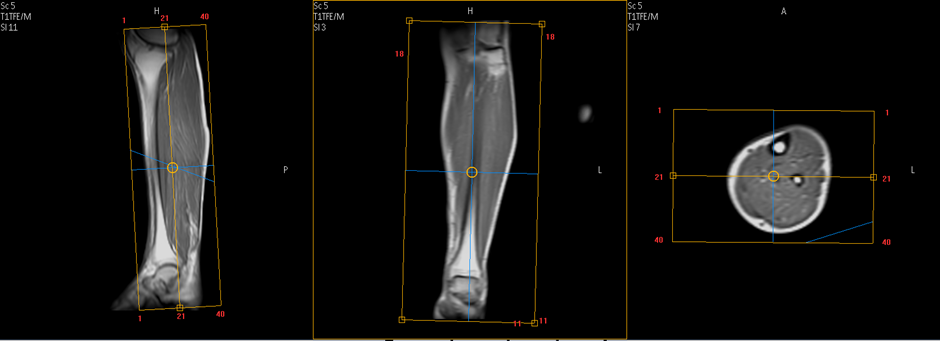

Sagittal plan: On coronal image plan block parallel to shaft of tibia and check block position on other planes with appropriate angle.




Sagittal Stir Scan parameters



FOV  400-480





TE – 80



TR

3000-5000



Matrix 292x292





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – AP



NEX 2



Saturation band parallel to the

plan





IR Delay 90



Oversampling-Yes





Sagittal T1 Scan parameters



FOV  400-480





TE – 15



TR

400-700



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the

plan





Oversampling-Yes



Coronal plan: On Sagittal image plan block parallel to tibia or fibula shaft   and check block position on other planes.





ANKLE

Transverse plan: on coronal image position block parallel to the mortise joint and check block position on other planes with appropriate angle.

Transverse PD Fat Sat Scan parameters



FOV  140-160





TE – 30



TR

2500-5000



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the

plan



IR Delay 80

Oversampling-Yes





Transverse PD TSE Scan parameters



FOV  140-160





TE – 10



TR

3500-5000



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the

plan





Oversampling-Yes





Transverse T1 Scan parameters



FOV  140-160





TE – 15



TR

400-700



Matrix 256X256





Flip angle-90













Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the

plan





Oversampling-Yes





Coronal plan: on Transverse image position block perpendicular to the medial and lateral malleoli and check block position on other planes with appropriate angle.




Coronal PD Fat Sat Scan parameters



FOV  140-160





TE – 30



TR

2500-5000



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the

plan



IR Delay 80

Oversampling-Yes





Coronal PD TSE Scan parameters



FOV  140-160





TE – 10



TR

3500-5000



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the

plan





Oversampling-Yes





Coronal T1 Scan parameters



FOV  140-160





TE – 15



TR

400-700



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the

plan





Oversampling-Yes







Sagittal plan: on Transverse image position block parallel to the medial and lateral malleoli and check block position on other planes with appropriate angle.



Sagittal PD Fat Sat Scan parameters



FOV  140-160





TE – 30



TR

2500-5000



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the

plan



IR Delay 80

Oversampling-Yes





Sagittal PD TSE Scan parameters



FOV  140-160





TE – 10



TR

3500-5000



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the

plan





Oversampling-Yes





Sagittal T1 Scan parameters



FOV  140-160





TE – 15



TR

400-700



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the

plan





Oversampling-Yes





FOOT



Position : Supine ,Feet first

Centre laser beam on mid ankle joint

Sequence : sagittal pd FS

Coronal : PD FS,T1,T2,PD

Transverse : PD FS,T2,T1.GRE

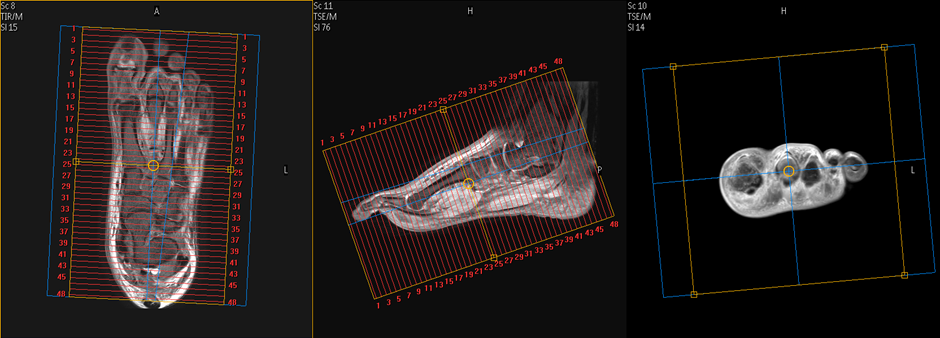

Coronal: plan line perpendicular to meta tarsal bone & check box angle on other planes in appropriate angle.





Coronal PD Fat Sat Scan parameters



FOV  140-160





TE – 30



TR

2500-5000



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the

plan



IR Delay 80

Oversampling-Yes





Coronal PD TSE Scan parameters



FOV  140-160





TE – 10



TR

3500-5000



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the

plan





Oversampling-Yes





Coronal T1 Scan parameters



FOV  140-160





TE – 15



TR

400-700



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the

plan





Oversampling-Yes







Transverse: plan :On sagittal image block  line parallel  to metatarsal or phalanges bone & check the block angle on other planes in appropriate angle.




Transverse PD Fat Sat Scan parameters



FOV  180-260





TE – 30



TR

2500-5000



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the

plan



IR Delay 80

Oversampling-Yes





Transverse PD TSE Scan parameters



FOV  180-260





TE – 10



TR

3500-5000



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the

plan





Oversampling-Yes





Transverse T1 Scan parameters



FOV  180-260





TE – 15



TR

400-700



Matrix 256X256





Flip angle-90













Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the

plan





Oversampling-Yes



Sagittal: plan : on coronal image block  line parallel  to metatarsal or phalanges bone & check the block angle on other planes in appropriate angle.





Sagittal PD Fat Sat Scan parameters



FOV  260-300





TE – 30



TR

2500-5000



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the

plan



IR Delay 80

Oversampling-Yes





Sagittal PD TSE Scan parameters



FOV  260-300





TE – 10



TR

3500-5000



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the

plan





Oversampling-Yes





Sagittal T1 Scan parameters



FOV  260-300





TE – 15



TR

400-700



Matrix 256X256





Flip angle-90







Slice thickness

3mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the

plan





Oversampling-Yes



Published by:

Dr Ravi Dutt Sharma. Jaypee Healthcare .Department of Radiodiagnosis Noida

Comments

Post a Comment

Popular posts from this blog

MRI Brain Protocol & Technique

  MRI Brain Protocol & Technique What is MRI Magnetic resonance imaging   ( MRI ) is a test that uses a magnetic field and pulses of radio wave energy to make pictures of organs and structures inside the body. In many cases,   MRI   gives different information about structures in the body than can be seen with an X-ray, ultrasound, or computed tomography (CT) scan. How it Work The human body is mostly water. Water molecules (H20) contain hydrogen nuclei (protons), which become aligned in a magnetic field. An   MRI   scanner applies a very strong magnetic field (about 0.2 to 3 tesla  or roughly a thousand times the strength of a typical fridge magnet), which aligns the proton "spins."   Before the imaging start, the hydrogen atom inside your body Are aligned in random Direction.   A Super conducting magnet creates a strong magnet field that aligns all the hydrogen protons in your body in same dire...
Read more

CHEST & ABDOMEN

                                                CHEST Position of patient: Supine headfirst. Explain the patient about breath hold & procedure. Supporting pad fix just below the legs. Centering on D4 Vertebra. Offer the patient ear plugs & ear protector or Music If necessary, have the patient raise his/her arms above his/her head Centering over xiphoid process of sternum.   Sequence- Survey three planes Sequence- Coronal T2, T2FS Axial –T2,T2FS,T1,BTFE Sag –T2, T2 FS All sequence performs with Respiratory Trigging. Axial- Plan axial on coronal or sagittal image using position of block across the chest and check position of block in other two planes. Coverage - entire lung from apex to costophrenic sinus. T2 Axial  Scan parameters  –   FOV -300--450       TE – 90   TR-Shortest   Flip a...
Read more
