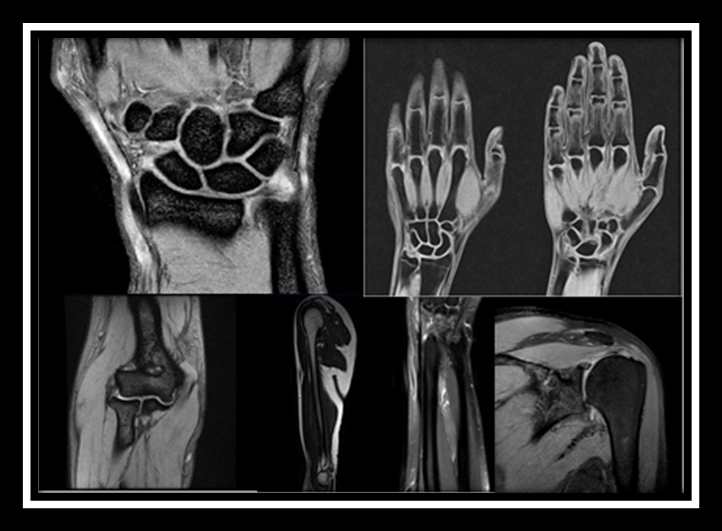

MRI Upper Limb PROTOCOLS &TECHNIQUE





Shoulder:

Position of patient: Supine

Fix the head by soft pad in the head or Shoulder  coil.

Supporting pad fix just below the legs.

Centering on glabella

Offer the patient ear plugs & ear protector or Music.

Sequence- Survey three planes


Coronal plane:

Position Supine

Centering: Glenohumeral joint

Block parallel to supraspinatus muscles.

Sequence: pd fat sat, PD TSE, T1 & 3D GRE.

Coronal PD Fat Sat scan parameters



FOV -140-150





TE – 90- 120





TR 3500-5000



Matrix 384X384





Flip angle80-90





Slice thickness 3 mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the slice



IR delay -100





Coronal PD scan parameters



FOV -140-150





TE – 15





TR 3000-3500



Matrix 384X224





Flip angle-90





Slice thickness 3 mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the slice







Coronal T1 scan parameters



FOV -140-150





TE – 15





TR 400-700



Matrix 288X244





Flip angle-90





Slice thickness 3 mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the slice







Coronal 3D P D Fat Sat scan parameters



FOV -140-150





TE – 40





TR 1200



Matrix 230X230





Flip angle-90





Slice thickness 0.5 mm





Gap -0





Fold over Direction – RL



NEX 1



Saturation band parallel to the slice







Sagittal plane

Position Supine

Block perpendicular to supraspinatus muscles

Sequence: pd fat sat, PD TSE, T1 & 3D GRE.


Sagittal PD Fat Sat scan parameters



FOV -140-150





TE – 90- 120





TR 3500-5000



Matrix 384X384





Flip angle80-90





Slice thickness 3 mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the slice



IR delay -100





Axial:

Block Position: Perpendicular   to Glenohumeral joint.

Check the position of block other two plane in appropriate angle.

PD fat sat, PD TSE, T1, GRE


Transverse PD Fat Sat scan parameters



FOV -140-150





TE – 90- 120





TR 3500-5000



Matrix 384X384





Flip angle80-90





Slice thickness 3 mm





Gap -10 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the slice



IR delay -100





Transverse PD scan parameters



FOV -140-150





TE – 90- 120





TR 3500-5000



Matrix 384X320





Flip angle80-90





Slice thickness 3 mm





Gap -10 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the slice







Transverse GRE scan parameters



FOV -140-150





TE1 – 40

TE2- 100





TR 600-800



Matrix 384X384





Flip angle-28





Slice thickness 3 mm





Gap -10 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the slice






ARM:

Position of patient: Supine headfirst.

Supporting pad fix just below the legs.

Centering mid shaft of   humerus.

Offer the patient ear plugs & ear protector or Music.

Sequence- Survey three planes

Sequence

Coronal-T2, STIR, T1

Sagittal – STIR, T1

AXIAL- T2 FS, T1

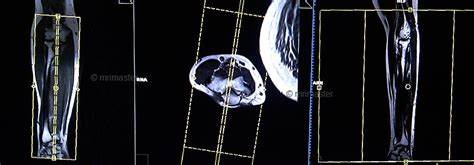

Transverse plan: on coronal or sagittal images plan block perpendicular to humerus and check the other plane appropriate angle.


Transverse PD Fat Sat scan parameters



FOV -140-200





TE – 90- 120





TR 3500-5000



Matrix 384X384





Flip angle-90





Slice thickness 5 mm





Gap -10 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the slice



IR delay -100





Transverse GRE scan parameters



FOV -140-150





TE1 – 40

TE2- 100





TR 600-800



Matrix 320X298





Flip angle-28





Slice thickness 3 mm





Gap -10 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the slice







Coronal plan: on sagittal image plan block parallel to humerus and check the other two planes with appropriate angle.

Coronal PD Fat Sat scan parameters



FOV -300-350





TE – 90- 120





TR 3500-5000



Matrix 384X384





Flip angle-90





Slice thickness 3 mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the slice



IR delay -100







Sagittal plan: on Coronal image plan block parallel to humerus and check the other two planes with appropriate angle.

Elbow:

Position of patient: Supine headfirst.

Supporting pad fix just below the legs.

Centering mid elbow joint.

Offer the patient ear plugs & ear protector or Music.

Sequence- Survey three planes



Transverse plan: on coronal image plan block parallel to medial and lateral epicondyles of humerus and check the other plane appropriate angle.


Transverse PD Fat Sat scan parameters



FOV -140-150





TE – 90- 120





TR 3500-5000



Matrix 384X320





Flip angle-90





Slice thickness 2.5 mm





Gap -0 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the slice



IR delay -100





Transverse GRE scan parameters



FOV -140-150





TE1 – 40

TE2- 100





TR 600-800



Matrix 384X384





Flip angle-28





Slice thickness 2.5mm





Gap -0 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the slice







Coronal plan: on transverse image plan block parallel to medial and lateral epicondyles of humerus and check the position of block on another plane with appropriate angle.


Coronal PD Fat Sat scan parameters



FOV -120-140





TE – 90- 120





TR 3500-5000



Matrix 384X384





Flip angle80-90





Slice thickness 3 mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the slice



IR delay -100





Coronal T1 scan parameters



FOV -120-140





TE – 15





TR 400-700



Matrix 288X244





Flip angle-90





Slice thickness 2 mm





Gap -0





Fold over Direction – FH



NEX 2



Saturation band parallel to the slice







Sagittal plan: on transverse image plan block perpendicular to medial and lateral epicondyles of humerus and check the position of block on another plane with appropriate angle.


Sagittal PD Fat Sat scan parameters



FOV -130-140





TE – 90- 120





TR 3500-5000



Matrix 384X384





Flip angle-90





Slice thickness 3 mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the slice



IR delay -100





Forearm

Position of patient: Supine headfirst.

Supporting pad fix just below the legs.

Centering mid shaft of   Radius Ulna.

Offer the patient ear plugs & ear protector or Music.

Sequence- Survey three planes

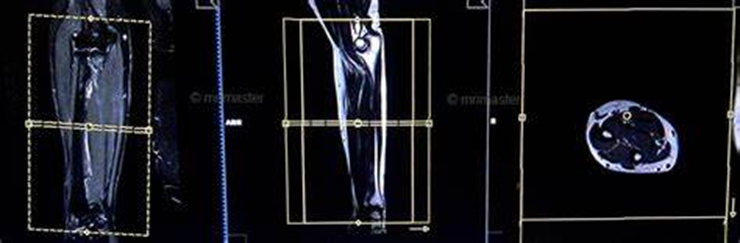

Transverse plan: on coronal or sagittal images plan block perpendicular to radius or ulna and check the other plane appropriate angle.


Transverse PD Fat Sat scan parameters



FOV -120-140





TE – 90- 120





TR 3500-5000



Matrix 384X320





Flip angle-90





Slice thickness 2.5 mm





Gap -0 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the slice



IR delay -100





Transverse GRE scan parameters



FOV -120-140





TE1 – 40

TE2- 100





TR 600-800



Matrix 384X384





Flip angle-28





Slice thickness 2.5mm





Gap -0 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the slice







Sagittal plan: on coronal image plan block parallel to radius or ulna and check the other plane appropriate angle.

Sagittal PD Fat Sat scan parameters



FOV -200-250





TE – 90- 120





TR 3500-5000



Matrix 384X384





Flip angle-90





Slice thickness 3 mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the slice



IR delay -100







Coronal plan: on transverse or sagittal images plan block parallel to radius or ulna and check the other plane appropriate angle.


Coronal PD Fat Sat scan parameters



FOV -200-250





TE – 90- 120





TR 3500-5000



Matrix 384X384





Flip angle80-90





Slice thickness 3 mm





Gap -10 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the slice



IR delay -100



Coronal T1 scan parameters



FOV -200-250





TE – 15





TR 400-700



Matrix 288X244





Flip angle-90





Slice thickness 3 mm





Gap -0





Fold over Direction – FH



NEX 2



Saturation band blow the slice.





WRIST

Position of patient: Supine feet first. /Headfirst

Supporting pad fix just below the FA.

Centering on mid joint.

Offer the patient ear plugs & ear protector or Music.

Sequence- Survey three planes



Sequence

Sagittal –PDFD, PD1, GRE,3DPDFS, T2

COR PDFS, PD, T1

TRANSVERSE –PDFS, PD, T1

Transverse plan: on coronal image plan block perpendicular to wrist joint and check the other plane appropriate angle.





Transverse PD Fat Sat scan parameters



FOV -80-100





TE – 90- 120





TR 2500-5000



Matrix 320X298





Flip angle-90





Slice thickness 2 mm





Gap -0





Fold over Direction – RL



NEX 2



Saturation band parallel to the slice



IR delay -80




Transverse PD scan parameters



FOV -80-100





TE – 90- 120





TR 3500-5000



Matrix 384X320





Flip angle80-90





Slice thickness 2 mm





Gap -10 % of slice thickness





Fold over Direction – RL



NEX 2



Saturation band parallel to the slice







Coronal plan: on transverse image plan block parallel to radius ulna joint and check the other planes with appropriate angle.


Coronal PD Fat Sat scan parameters



FOV -80-100





TE – 90- 120





TR 2500-5000



Matrix 384X324





Flip angle-90





Slice thickness 2 mm





Gap -0





Fold over Direction – FH



NEX 2



Saturation band parallel to the slice



IR deley -80




Scan Parameters Coronal PD TSE



FOV -80-100





TE-Shortest





TR 2500-5000



Matrix 320X292





Flip angle-90





Slice thickness 2 mm





Gap -0





Fold over Direction – FH



NEX 2



Saturation band parallel to the slice





Coronal GRE scan parameters



FOV -80-100





TE1 – 40

TE2- 100





TR 600-800



Matrix 384X320





Flip angle-28





Slice thickness 2mm





Gap -0 % of slice thickness





Fold over Direction – FH



NEX 2



Saturation band parallel to the slice





Coronal T1 scan parameters



FOV -80-100





TE – 15





TR 400-700



Matrix 288X244





Flip angle-90





Slice thickness 2 mm





Gap -0





Fold over Direction – FH



NEX 2



Saturation band parallel to the slice





Coronal 3D P D Fat Sat scan parameters



FOV -100-120





TE – 40





TR 1200



Matrix 230X230





Flip angle-90





Slice thickness 0.5 mm





Gap -0





Fold over Direction – FH



NEX 1



Saturation band parallel to the slice





Sagittal plan: on transverse image plan block perpendicular to distal radius or ulna and check the other plane appropriate angle.


Sagittal PD Fat Sat scan parameters



FOV -80-100





TE – 90- 120





TR 2500-5000



Matrix 384X324





Flip angle-90





Slice thickness 2 mm





Gap -0





Fold over Direction – FH



NEX 2



Saturation band Blow the slice.



IR delay -80
